D.E. Frame
For:
Delco CS130 Series IR/EF Alternators
Used On:
(1996-92) Buick, Chevrolet, GMC, Oldsmobile, Pontiac
Replaces:
Delco 10475377, 10476236
WAI 21-146
Unit Nos:
Delco 1101110, 1101111, 10480055, 10480069, 10480082, 10480084, 10480086, 10480087, 10480094, 10480097, 10480099, 10480104
Lester 7861, 7921, 8165, 8189

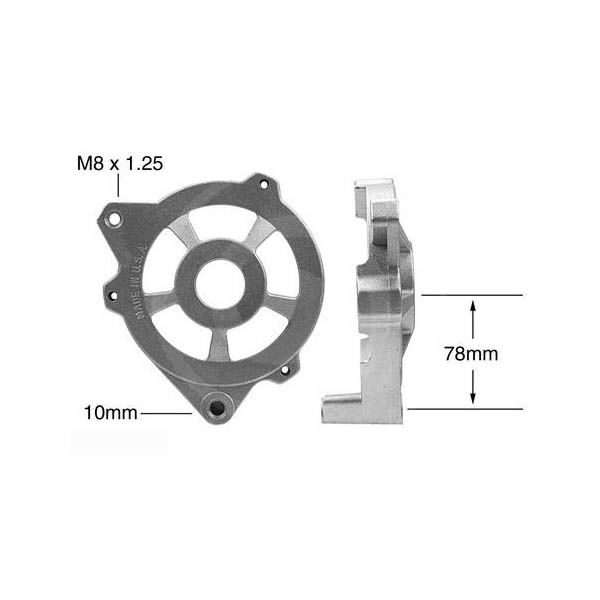

Dimensions:
Mtg. Ear Hole Size: M8 x 1.25
Mtg. Ear Thickness: 16mm
Mtg. Foot Hole Size: 10mm
Mtg. Foot to Bearing Center: 78mm
Bearing Bore Dia.: 47mm
Stator Bore Dia.: 126mm
